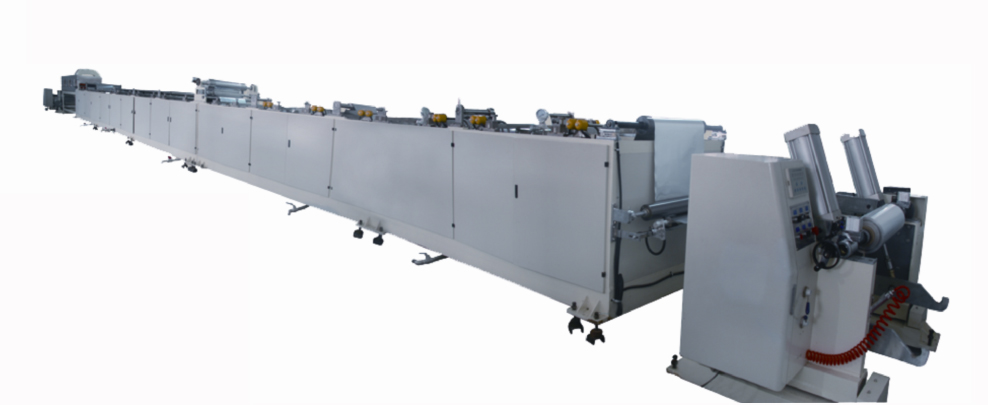

Honeycomb gluing equipment mainly includes the gluing machine and fixed length cutting system. Customize aramid fiber honeycomb gluing equipment can print the core glue on aramid paper, control the gluing quantity, complete the preparation of different specifications aramid fiber honeycomb core glue, and drying the core glue, winding, forming roll base material with glue. Then through the automatic cutting system unwinding, fixed length cutting, folded honeycomb plate. The gluing machine is composed by glue automatic supply system, glue viscosity control system, double location feeding system, rectifying device, tension control of unwinding, gluing system, drying system, cooling system, traction feeding, double location winding, eliminate electrostatic system and control system.

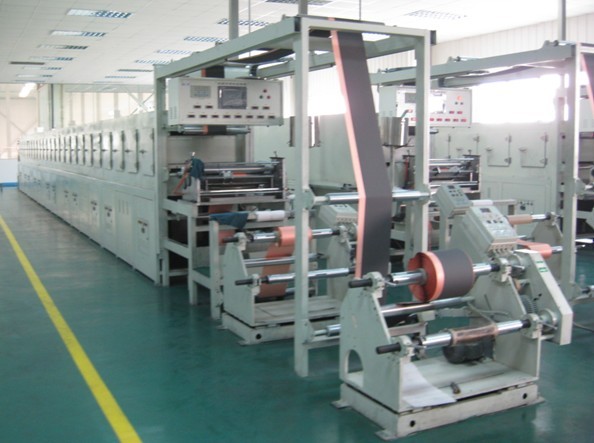

The machine is mainly used for cleaning and phosphoric acid anodizing for the surface of aluminum foil when production of aluminum honeycomb core. The equipment have the function including alkali tank cleaning, phosphoric acid anodizing, gluing, drying, edge cutting,winding, etc. Achieving automatic control through programming.

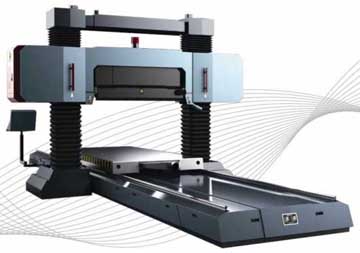

Aramid honeycomb slice cutting machine is used for equal thickness or variable thickness processing of the cured honeycomb core material;can realize automatic cutting according to the preset parameters. can be directly setting the required parameters and monitor the machine running condition on touch screen operation interface.The honeycomb block size can be cut is 2800mm x 1350mm x 950mm.

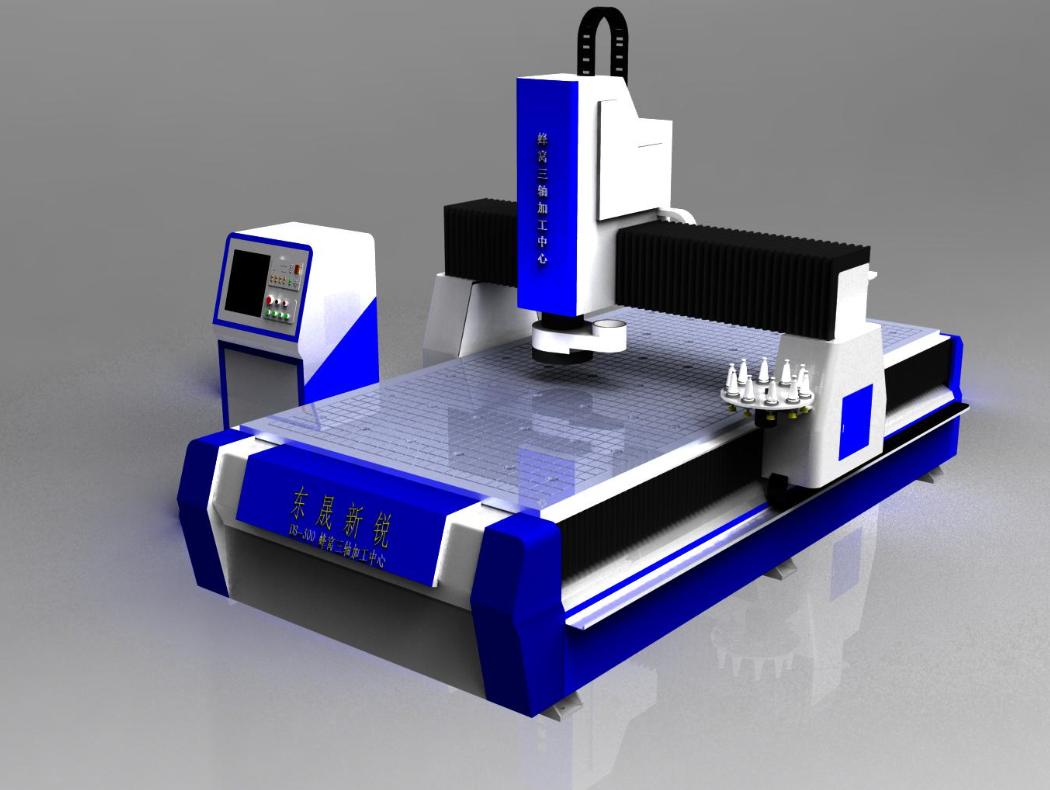

3 Axis CNC machine is for aramid honeycomb core materials,aluminum honeycomb core materials,high-density foam and other composite materials.In accordance with thematerials,choose relevant blade,then through CNC programming,to realize cutting of arc,milling,beveling,and other functions.

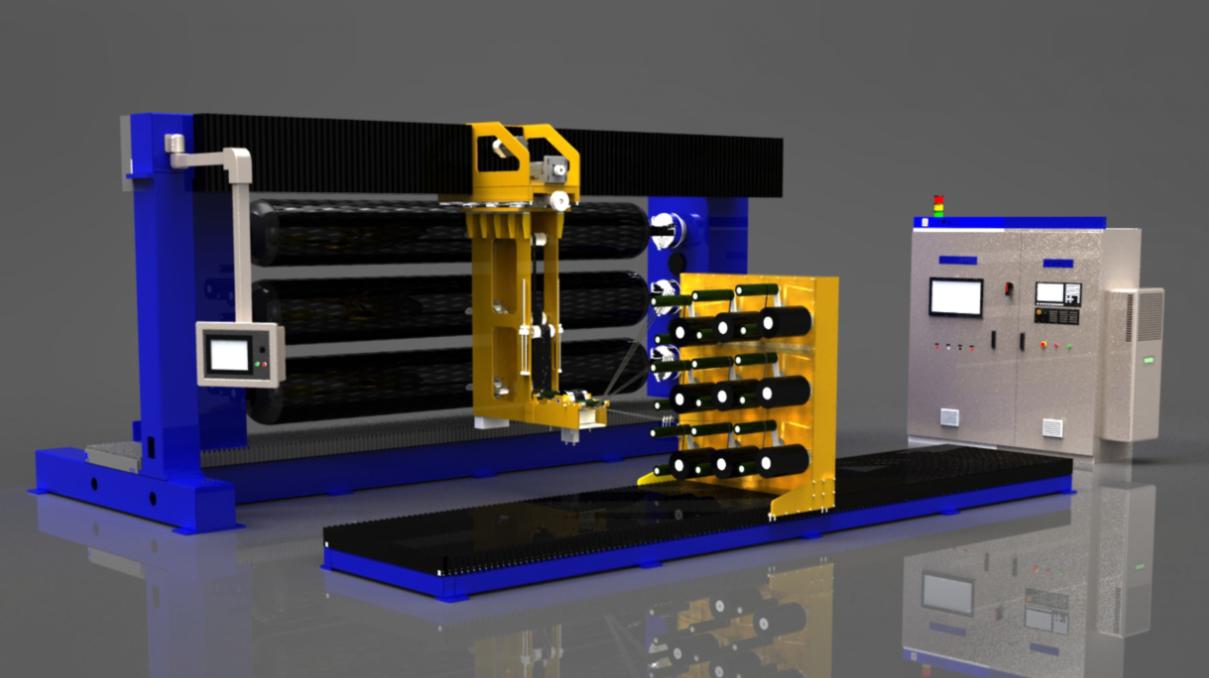

5 Axis linkage CNC cloth tape winding machines mainly used for winding the preimpregnated cloth tape and molding.lt can realize flat coil and oblique winding on roller according the technological parameters.In the process,monitor and adjust the parameters,include hot wind temperature,hot roller temperature,cloth tape tension and pressure of press roller etc,mernwhile,display,save and record all kinds of technical parameters.

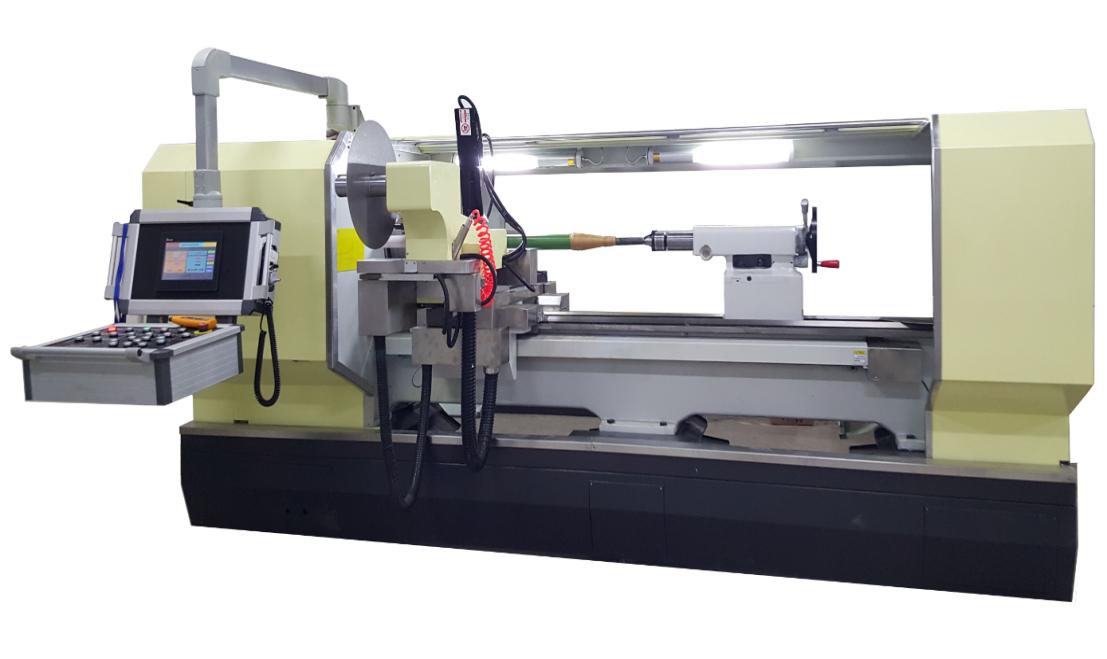

CNC fiber winding machine is mainly used for fiber winding and molding. It can winding the carbon fiber tow or glass fiber tow on rollers according to the given process parameters.It can realize hoop winding, spiral winding, and can realize dry winding or wet winding. In the process, monitor and adjust the parameters, meanwhile, display, save and record all kinds of technical parameters.

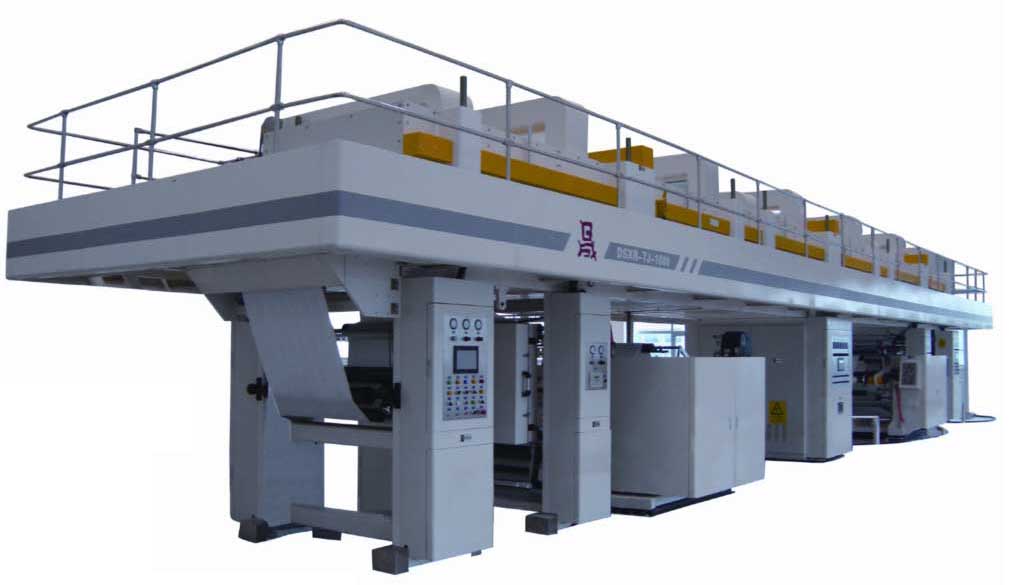

Double-sided coating machine is designed for coating chemical material used for lithium battery manufacture. It absorbed advanced coating machine technology, synthesized own many years production experience of coating machine then comprehensive development to become, its function was perfect, operation human nature. Parameters： Running speed：linear speed 1～8m／min； maximum speed Vmax=8m／min； Coating mode：continuous coating； Coating width：≤500mm； Parameter settings and display: direct input from touch-screen Control power：3KW； Control method：PLC programming； Temperature range：room temperature ~120℃ accuracy of temperature control：±1℃ heating power：60KW Dimensions： L19m x W1m x H2.4m；

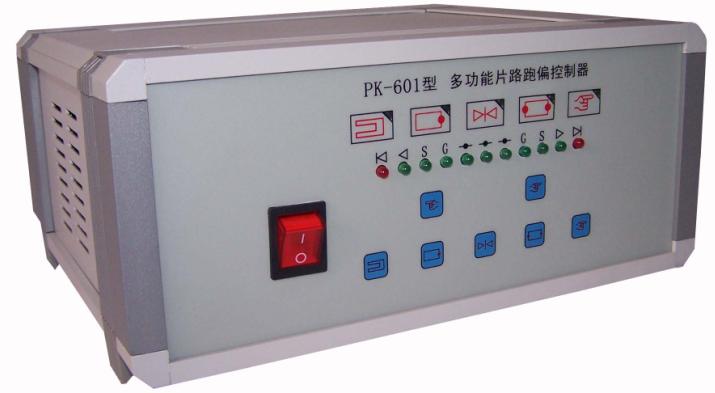

Rectification Controller is designed to keep foil material running at correct directions during manufacturing process. It available for any coiled material , eg. roll paper, film,tinsel, non-woven fabrics, weaving and so on. It has been widely used on coating machine, roll laminator, splitting machine, cloth inspecting machine, printing machine, sack-making machine, artificial leather machine, wallpaper-making machine, metal hoop mill, zinc coating machine, annealing machine in many industry, include photographic film, insulating material, medical adhesive plaster, plastic wrap, spinning, papermaking, printing, metal rolling and so forth. This controller is functional, simplicity of operator, steady-going, which are accepted by all the customers.
